FROM MANUAL SHUTTLES, TO SEMI-AUTOMATIC ROTARIES TO FULLY AUTOMATIC ROTARIES, CAROUSELS & INLINE PACKAGING MACHINES
THE perfect fit for your market!
Starview’s Medical & Pharmaceutical Packaging Machines are available with the largest selection of standard sizes, makes and models in the industry. From manual to semi-automatic to fully automatic machines that includes our shuttles, rotaries, carousels and in-line blister packaging lineup. Standard sizes and model comparisons can be seen below.
Starview continues to update, and innovate to bring flexible, easy to operate, high value to investment machine options to the blister packaging market for over 35 years. Automated / Integrated and Customized Medical and Pharmaceutical Packaging Systems can be viewed on those pages showcasing what Starview can do for your specific needs. Contact us to see how we can help you take advantage of our experience.

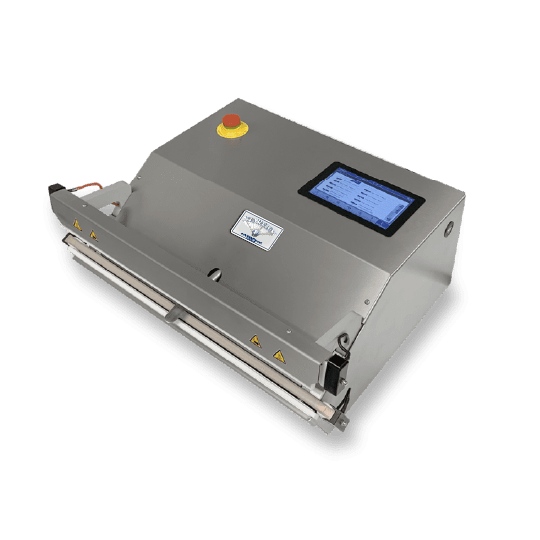

more information (pdf) series comparison need vacuum or band sealing? see our Vacuum & Band Sealers
- A wide range of standard and optional features available to match customer requirements.
- Generous use of powder coated steel, stainless steel and polycarbonate in the structure for the most durable finish in the industry.
- Color touch screen HMI for the ultimate in operator convenience and accessibility. Includes storage for 99 databases and on-screen data tracking.
- A Starview exclusive remote access via standard Ethernet hardwire or optional Wi-Fi router gives management access to real-time process information from the machine.
- On-screen temperature calibration standard with optional on-screen pressure calibration available to simplify validation using direct access validation ports.
- Ultra-high pressure sealing presses used in conjunction with matched aluminum tooling to give consistent sealing patterns with any heat sealable medical lidding materials.
- Precision indexing rotary table for precise sealing fixture to matching relieved face plate alignment.
- Industry leading design, construction, features and customer support.
More than one possibility:
INCREASE OUTPUT FROM YOUR MANUAL MACHINE
Starview’s Semi-Automatic Medical Device Tray Sealer ERB/PH4-1418
It's time to increase output from your manual machine. Starview's ERB/PH series of machines increases your efficiency, reduces labor and gives you the largest selection of sizes and models in the market. From 4 to 6 to 8 station rotaries in 14"x18" and 18"x24" seal area plus optional Tyvek lid feeding and unloading. Perfect for medium volume medical tray or pharmaceutical wallet packaging.
more about ERB seriesCustomized Machine
Starview’s Custom FAB/PH8-1418 Semi-Automatic Medical Device Rotary Tray Sealer
Starview leads the Medical Device Tray Sealer Market with custom designed and integrated packaging machines. We bring 35+ years of expertise and innovative design to meet your most demanding needs. Automation of your packaging, marking, verification and validation are just a few of the features we can help you achieve in your packaging operations.
see our customized machines
SB/PH1-1012 Series
Table Top Manual Shuttle |
SB/PH1-1418 Series
Manual Shuttle |
ERB/PH Series
Semi-automatic Rotary |
|
| Size type of production: | Low | Small | medium to high volume |
| Nominal sealing area: | 10” x 12” | 18” x 24“ / 24” x 30“ / 24” x 36“ | 14” x 18” /18” x 24“ |
| # of open load stations: | 1 | 1 | 3 or 5 |
| Max. blister depth: | 3.0” | 3.0” | 3.25" |
| Heating system: | 1 zone | multi zones | multi zones |
| Table Index: | N/A | N/A | Automatic |
| Tyvek feeder: | N/A | N/A | Optional attached or Self-standing |
| # of automatic feeders: | N/A | N/A | Optional Tyvek feeder |
| Finished package unloader: | N/A | N/A | Optional |
| Electrical: | 115 Volts / 1PH / 13 Amps | 208-230 Volts / 1PH / 30 Amps or 208-230 Volts / 3PH / 25 Amps |
208-230 Volts / 1PH / 25 or 55 Amps or 208-230 Volts / 3PH / 40 Amps |
FAB/PH Series
Fully Automatic Rotary |
BSC/PH Series
Fully Automatic Carousel |
CBS/PH Series
Fully Automatic Inline |
|
| Size type of production: | medium to high volume | Hight volume | Hight volume |
| Nominal sealing area: | 14” x 18” / 18” x 24“ | 14” x 18” / 18” x 24“ | 14” x 28” |
| Max. blister depth: | 3.0” | 3.25” | 3.25” |
| Prod. loading operation: | Fully-automatic | Fully-automatic | Fully-automatic |
| # of sealing fixtures: | 6 or 8 | 16 | 16 |
| Open loading stations: | 2-3 or 4 | 9 | 9 |
| Tyvek feeder: | Automatic or Self-standing | Standard | Automatic or Self-standing |
| # of automatic feeders: | 2 | Standard | 2 |
| Card feeder(s): | Standard | Standard | Standard |
| Finished package unloader: | Standard | Standard | Standard |
| Electrical: | 208-230 Volts / 3PH / 45 Amps | 208-230 Volts / 3PH / 50 Amps | 208-230 Volts / 3PH / 50 Amps |
